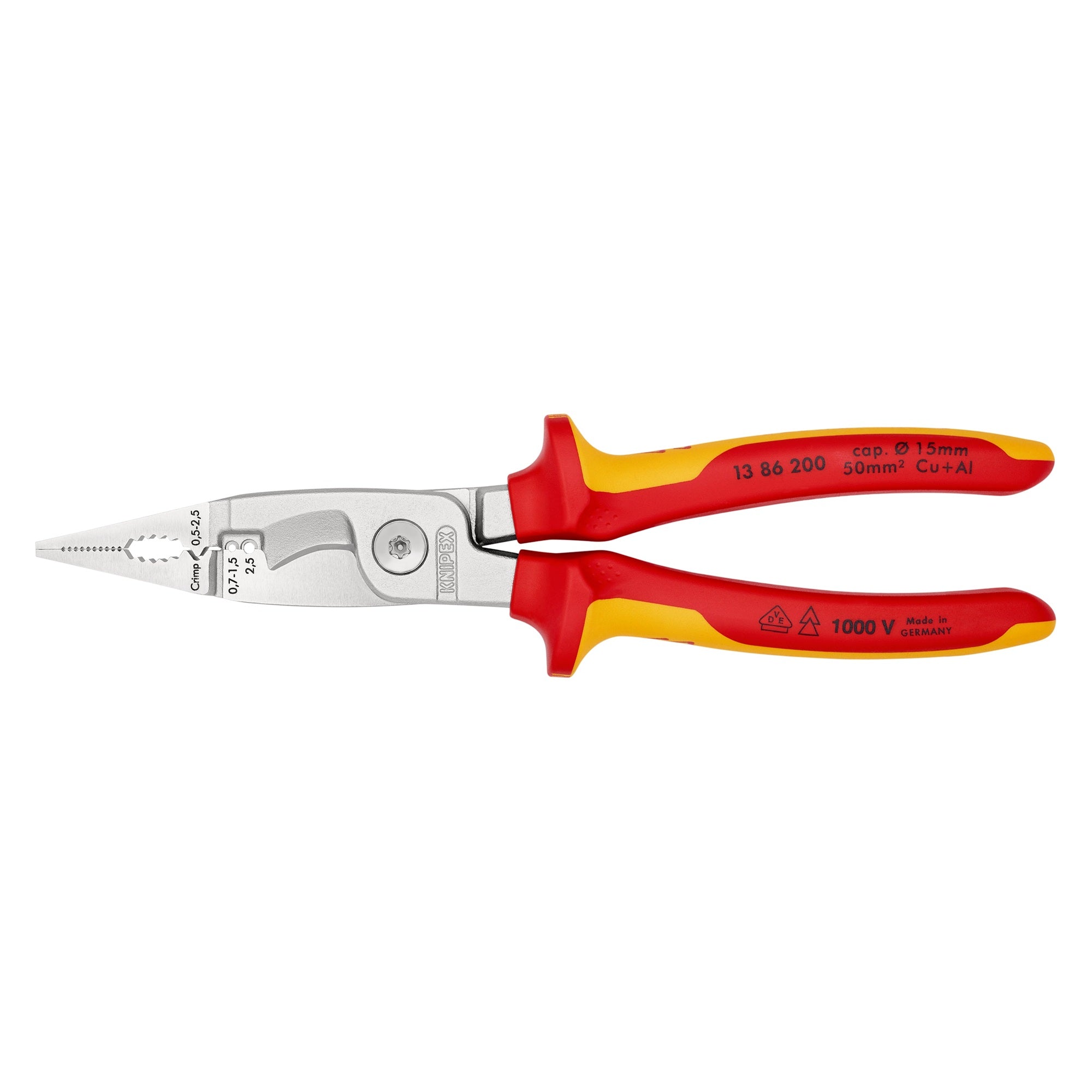

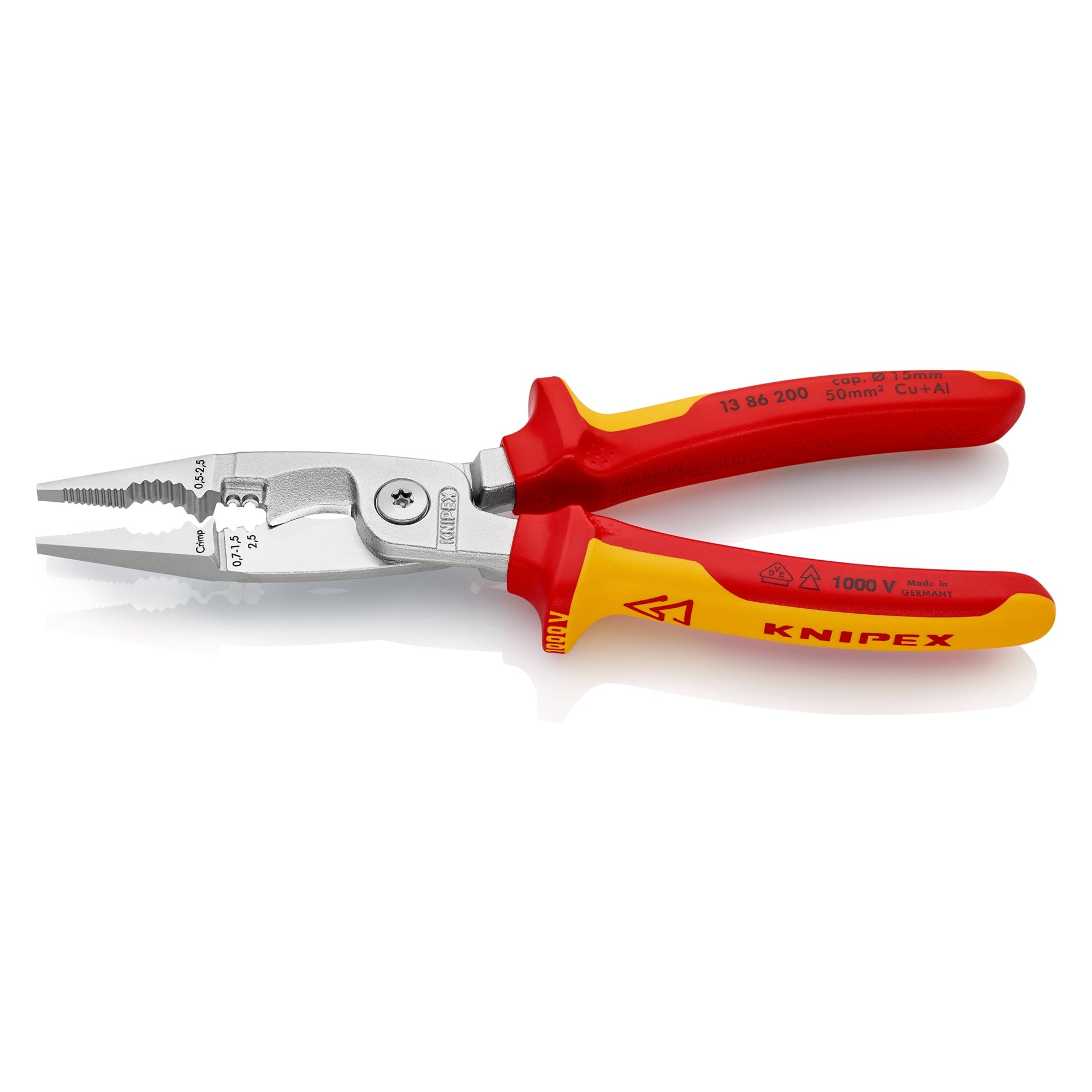

The Knipex 13 86 200 SB VDE Electrical Installation Pliers 200mm combines 6 functions in one pair of pliers. To grip flat and round material, for bending, deburring, cutting cable, stripping and crimping wire ferrules. Smooth surfaces near the tips grip single cores without damaging them.

Features:

• 6 functions in one pair of pliers
• To grip flat and round material, for bending, deburring, cutting cable, stripping and crimping wire ferrules
• Smooth surfaces near the tips grip single cores without damaging them
• Serrated gripping surfaces and pipe grip for gripping flat and round material
• Clear-cut outside edge on the gripping surfaces for working on flush-mounted junction boxes and deburring feed-through holes
• Stripping holes for conductors of 0.75 - 1.5 mm² and 2.5 mm²
• Crimping die for wire ferrules 0.5 - 2.5 mm²
• Cable shears with (induction-hardened) precision cutting edges for copper and aluminium cables up to 5 x 2.5 mm² / Ø 15 mm
• Slim dimensions for easy access
• Bolted joint: precise, zero backlash operation of pliers

Specification:

• Overall Length: 200mm
• Finish: chrome-plated
• Handles: insulated with multi-component grips, VDE-tested
• Head: chrome-plated
• AWG: 1 / 0
• Capacity (mm²): 0.5 - 2.5 mm²
• Crimp Profile: Mandrel-Crimp
• Multi-Stranded Copper Cable Cutting Capacity (Diameter): Ø15 mm
• Multi-Stranded Copper Cable Cutting Capacity: 50 mm²
• Jaw Style: flat jaws
• Joint Design: Bolted joint
• DIN Standard: DIN EN 60900
• IEC Standard: IEC 60900
• Cross-Section Stripping Capacity: 0.75 - 1.5 mm
