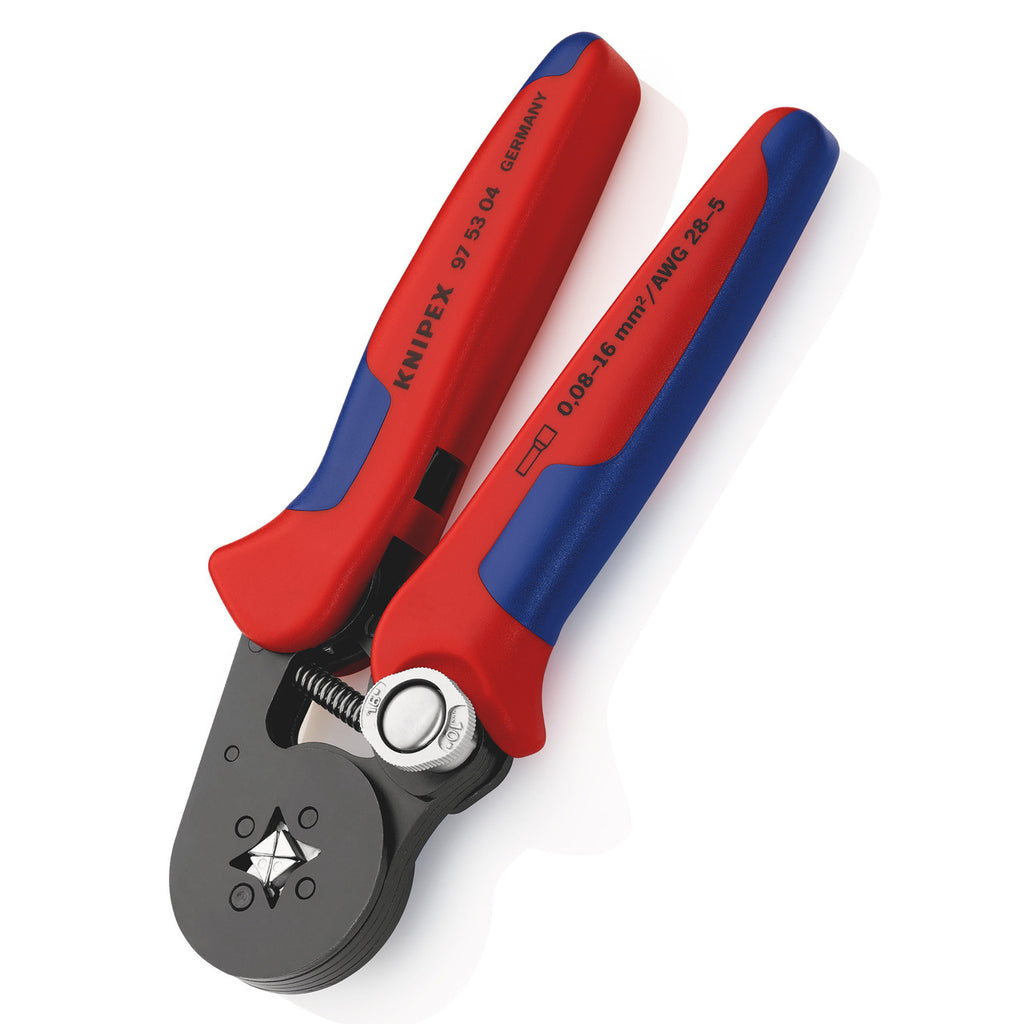

The Knipex 97 53 04 SB Self-Adjusting Crimping Pliers for Wire Ferrules with Lateral Access 180mm features square compression. Also for Twin wire ferrules up to 2 x 6 mm² or 2 x AWG 10. It is also designed for wire ferrules up to 16 mm².

Features:

• With square compression
• Also for Twin wire ferrules up to 2 x 6 mm² or 2 x AWG 10
• For wire ferrules up to 16 mm²
• Adjusts automatically to the wire ferrule size for precise and quick crimping
• Crimping of wire ferrules according to DIN 46228 parts 1+4
• UL approval in conjunction with KNIPEX wire ferrules 97 99 330 - 399
• Repetitive, high crimping quality due to ratchet mechanism (unlockable)
• Precise, factory calibrated crimping pressure
• Efficient lever action ensures a high crimping force
• Narrow handle width
• Ergonomic and comfortable handle, smooth operation and lightweight
• Special quality chrome vanadium electric steel, oil-hardened

Specification:

• Overall Length: 180mm
• Finish: burnished
• Handles: with multi-component handles
• AWG: 28 - 6
• Application: Wire ferrules
• Capacity (mm²): 0.08 - 10 mm²
• Crimp Profile: Square crimp automatic
• Number of Crimping Positions: 1
