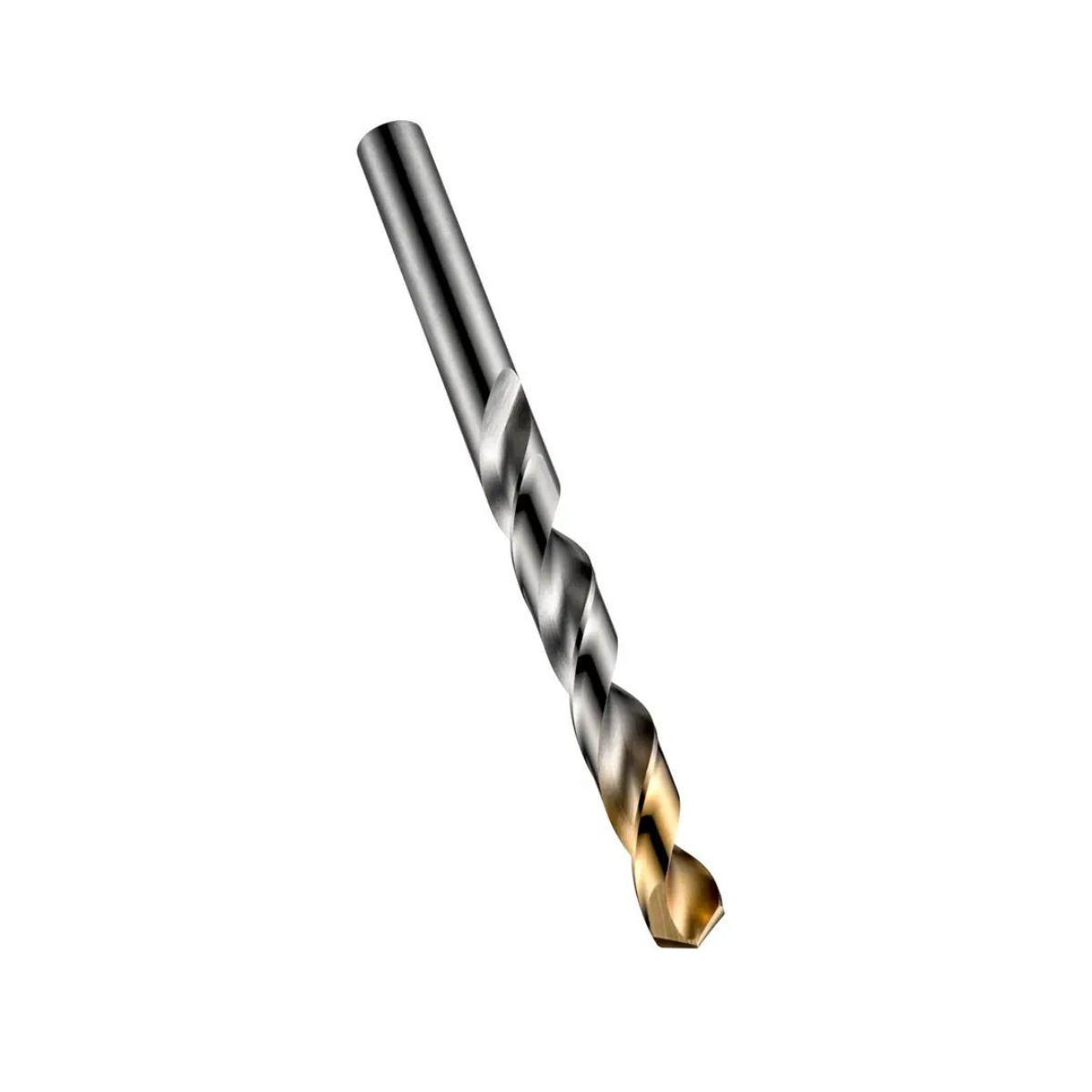

Dormer A0027.4 HSS TiN Jobber Drill DIN 338 7.40mm 10 Pack

The Dormer A0027.4 HSS TiN Jobber Drill is a 7.4mm straight-shank drill designed for accurate and efficient drilling in steel and other engineering materials. Manufactured from High Speed Steel with a TiN-coated tip, it delivers reliable performance and supports drilling up to 4x diameter without pecking.

Features:

• 7.4mm diameter jobber length drill
• Manufactured from durable High Speed Steel (HSS)
• TiN tip coating improves wear resistance and cutting performance
• 118° modified split point for accurate starting and efficient penetration
• Suitable for drilling up to 4xD without pecking
• Manufactured to DIN 338 straight-shank drill standards
• Standard spiral flute design for effective chip evacuation
• Cylindrical / straight shank
• Right-hand cutting rotation
• h8 industry-standard diameter tolerance
• Suitable for use across a wide range of engineering materials


Specification:

• Diameter: 7.4mm
• Shank Diameter: 7.4mm
• Overall Length: 109mm
• Flute Length: 69mm
• Drill Point: 118° Modified Split Point
• Tool Material: High Speed Steel (HSS)
• Coating: Bright with TiN Tip Coating
• Standard: DIN 338
• Shank Type: Cylindrical / Straight Shank
• Flute Type: Standard Spiral
• Cutting Direction: Right Hand
• Usable Depth: 4xD
• Tolerance: h8
• Pack Quantity: 10
