Dormer A190 No.201 HSS Drill Bit Set 1 - 10mm (19 Piece)

Description:

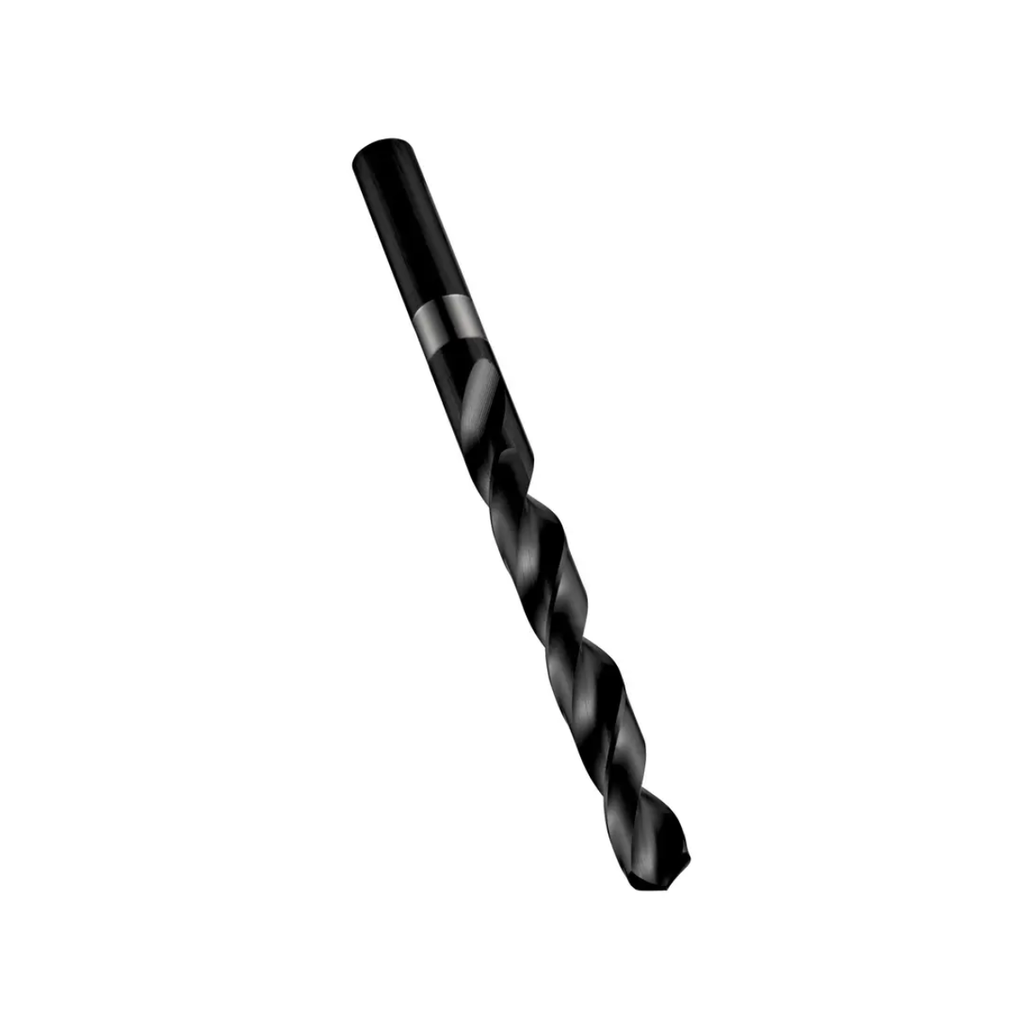

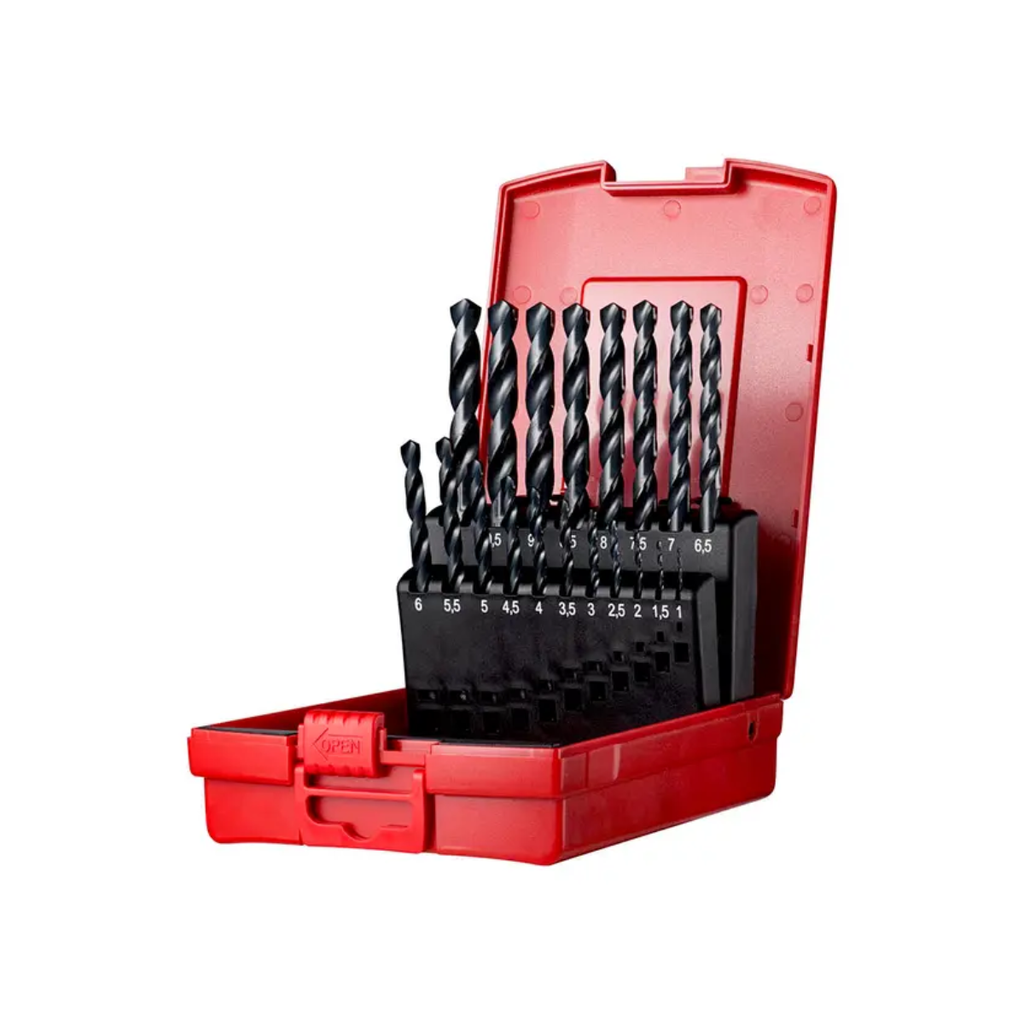

The Dormer A190201 Drill Set includes 19 high-speed steel (HSS) jobber-length drill bits, supplied in a durable plastic storage case. Manufactured to DIN 338 standards, each bit features a 118° conical point and a steam-tempered (oxide) finish, offering superior wear resistance and reliable chip evacuation. These straight shank drills are designed for 4xD drilling without pecking in steel and are suitable for general-purpose drilling in a wide range of engineering and workshop applications.

Features:

• Includes 19 HSS drill bits from 1.0 mm to 10.0 mm in 0.5 mm increments
• High-speed steel construction for durability and long tool life
• Steam tempered (steam oxide) finish for improved heat resistance and reduced friction
• 118° conical point for general-purpose drilling
• Jobber length design with standard spiral flute
• Cylindrical (straight) shank for use in standard drill chucks
• Right-hand cutting direction
• Manufactured to DIN 338 standard
• Suitable for drilling up to 4xD depth in steel without pecking

Specifications:

• Product type: Metric jobber drill set
• Material: High-speed steel (HSS)
• Surface treatment: Steam tempered (steam oxide)
• Drill standard: DIN 338
• Point angle: 118°
• Shank type: Cylindrical / straight shank
• Tolerance: h8
• Cutting direction: Right hand
• Number of drills: 19
• Storage: Supplied in plastic cassette
