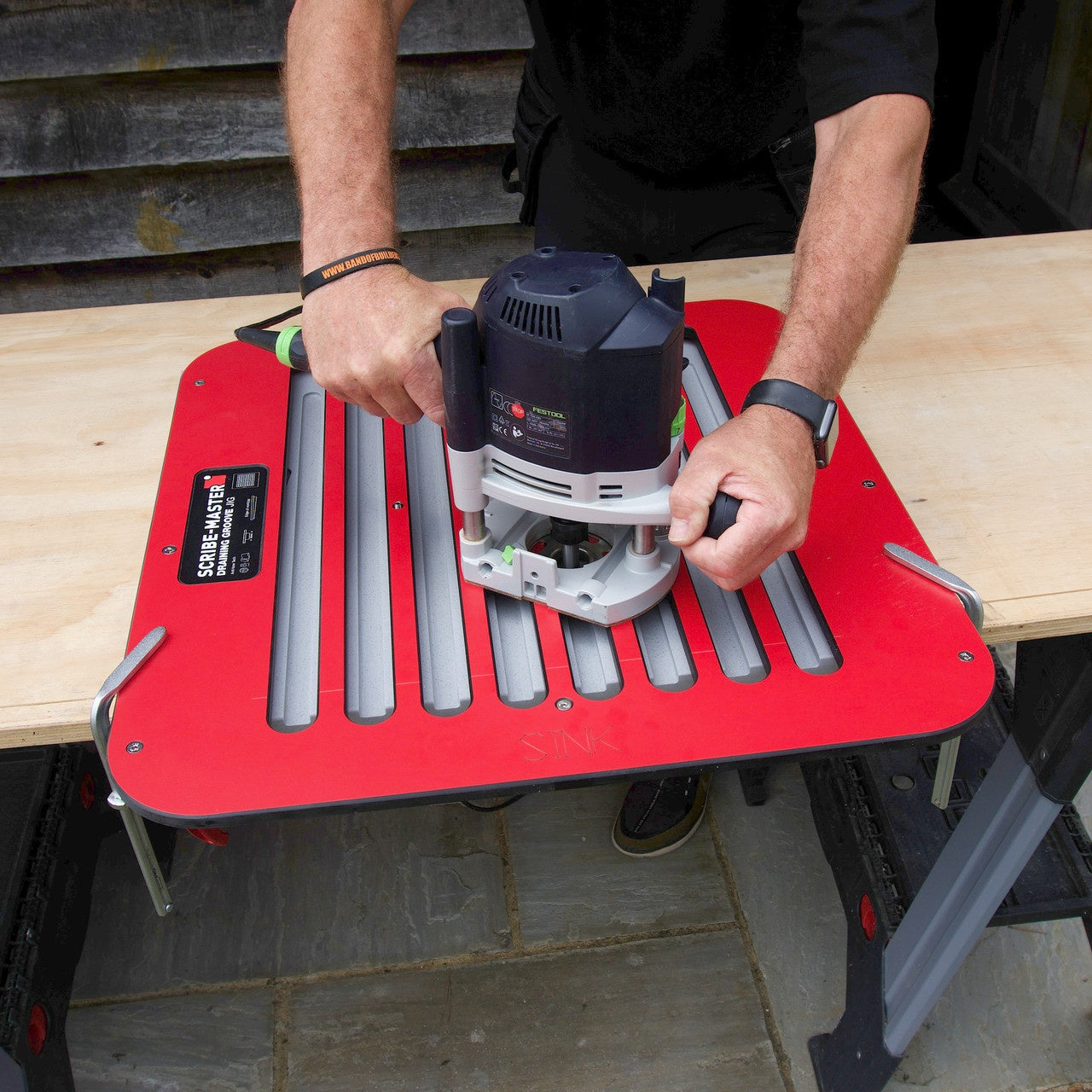

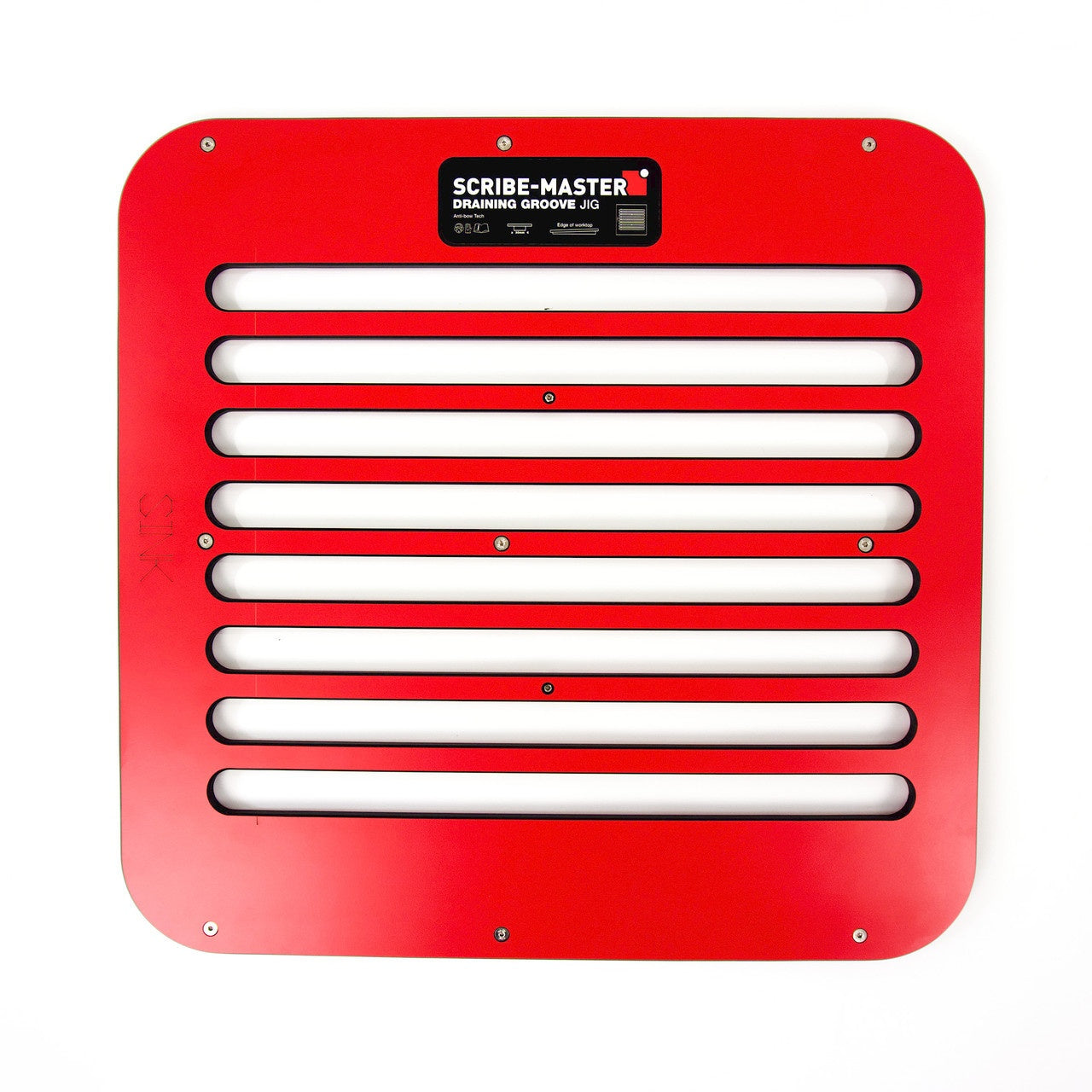

The Scribe-Master DG/JIG Draining Groove Jig is a precision routing jig designed for creating draining grooves in solid timber worktops for Belfast and under-mount sinks. Manufactured from 12mm CNC-machined high-density phenolic laminate, it delivers exceptional strength, accuracy and durability for professional woodworking.

Featuring innovative Anti-Bow Technology, the jig helps prevent worktop "dishing", ensuring water drains effectively. Three removable support runners provide a built-in 0.5° fall, eliminating the need for spacers and making setup quicker and more accurate.

Features:

• Designed for routing draining grooves for Belfast and under-mount sinks
• Anti-Bow Technology helps prevent worktop dishing
• Built-in 0.5° fall for accurate water drainage
• Manufactured from durable 12mm CNC-machined high-density phenolic laminate
• Three removable support runners for improved router support
• 8 drainer grooves at 50mm centres
• 455mm groove length
• Laser-engraved sight lines for fast, accurate setup
• Cutter diameter check hole
• Cutter and guide bush not included

Specification:

• Material: High-density phenolic laminate
• Dimensions: 600 x 585 x 12mm
• Groove Length: 455mm
• Groove Pitch: 50mm
• Slat Width: 19.8mm
• Built-in Fall: 0.5°
• Weight: 4.3kg
