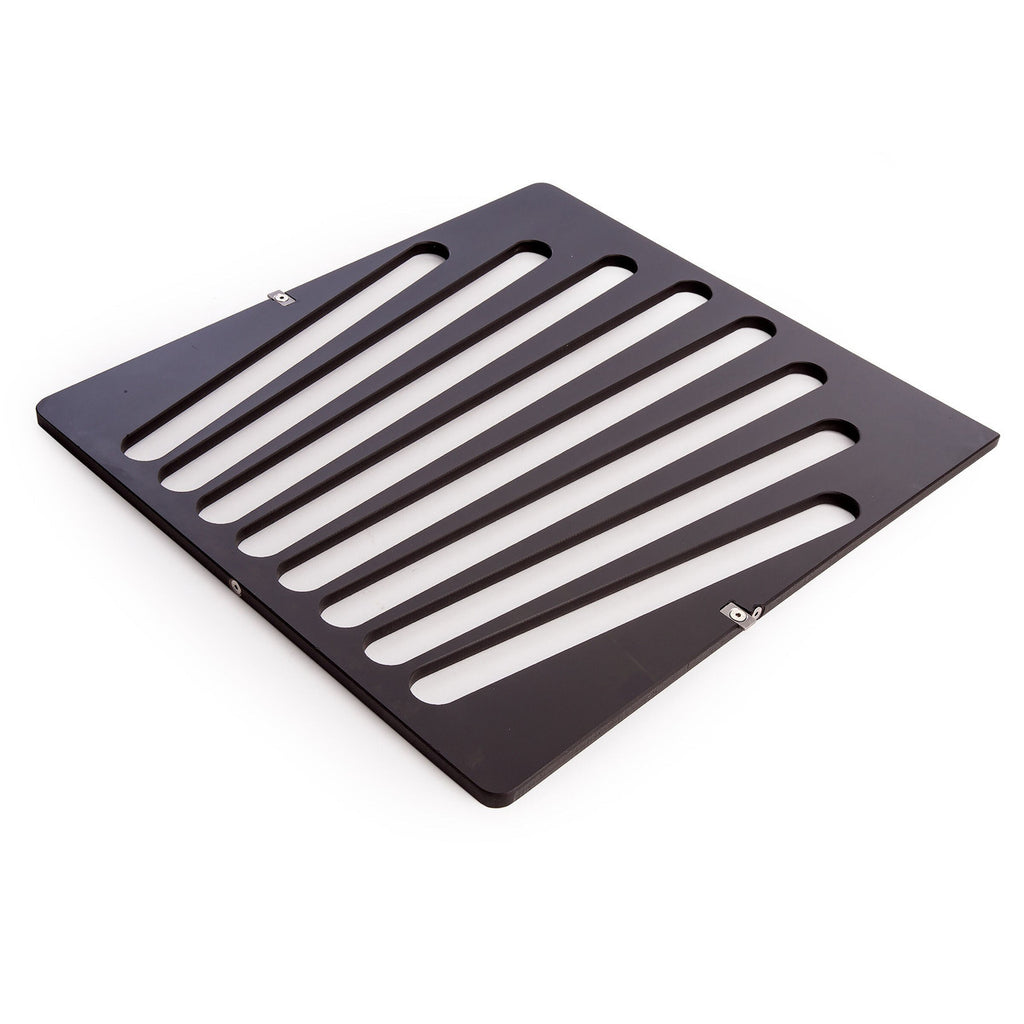

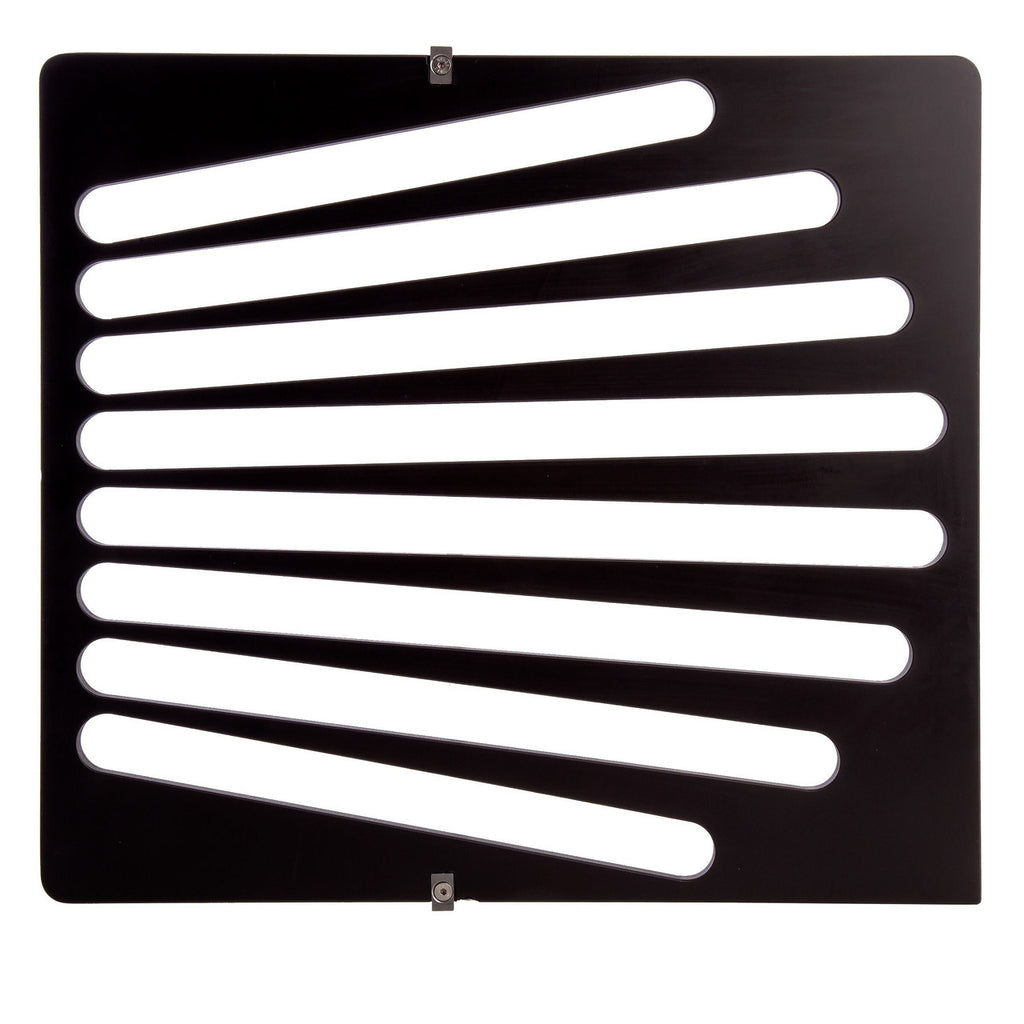

Trend DGP/IP/SF Inner Plate Straight Fan

The Trend DGP/IP/SF Inner Straight Plate Fan is an accessory designed to be used with the Drainer Groove Pro Jig Frame to create straight fan drainer grooves in solid timber and solid surface worktops. Made from 12mm hardwearing CNC machined phenolic, it is long-lasting and durable.

Features:

• Made from 12mm hardwearing CNC machined phenolic
• Requires suitable plunge router with 30mm guide bush and R9.5mm cove cutter
• Must be used with the DG/PRO jig frame to maintain 0.5-degree fall

Specification:

• Pitch: 40 mm to 62 mm
• Groove length: 432 mm
• Template Requirements:
• Guide bush: 30 mm
• Plunge router: 1/2-inch
• Cutter Cove: R9.5 mm
• Length: 500 mm
• Width: 500 mm
• Thickness: 12 mm
• Weight: 2.7kg
