Scribe-Master DGPRO1 Draining Groove PRO Jig & DGSSSF Straight Slot/Straight Fan Template Set

The Scribe-Master DGPRO1 Draining Groove PRO Jig Set combines the DGPRO jig frame with the DGSSSF Straight Slot/Straight Fan template, providing a versatile system for routing professional draining grooves in solid timber and solid surface worktops. The jig features a built-in 0.5° fall and adjustable X/Y axis carriage for controlled and accurate routing.

Features:

• Complete draining groove jig and template package
• Includes the DGPRO Draining Groove PRO Jig and DGSSSF Straight Slot/Straight Fan Template
• Built-in 0.5° fall helps create effective drainage
• Suitable for solid timber and solid surface worktops

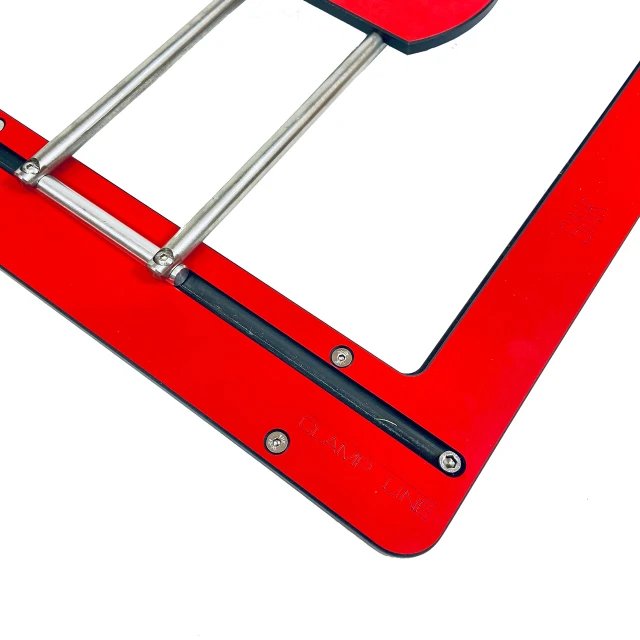

• Free-moving X and Y axis carriage allows forward, backward and side-to-side adjustment
• Carriage can be locked for routing parallel draining grooves
• Outer skids feature index holes every 50mm for controlling groove length
• Supplied with two index pins
• Router base accepts a standard 30mm guide bush
• Can be used with the carriage for standard flat drainer grooves or with templates for alternative groove designs

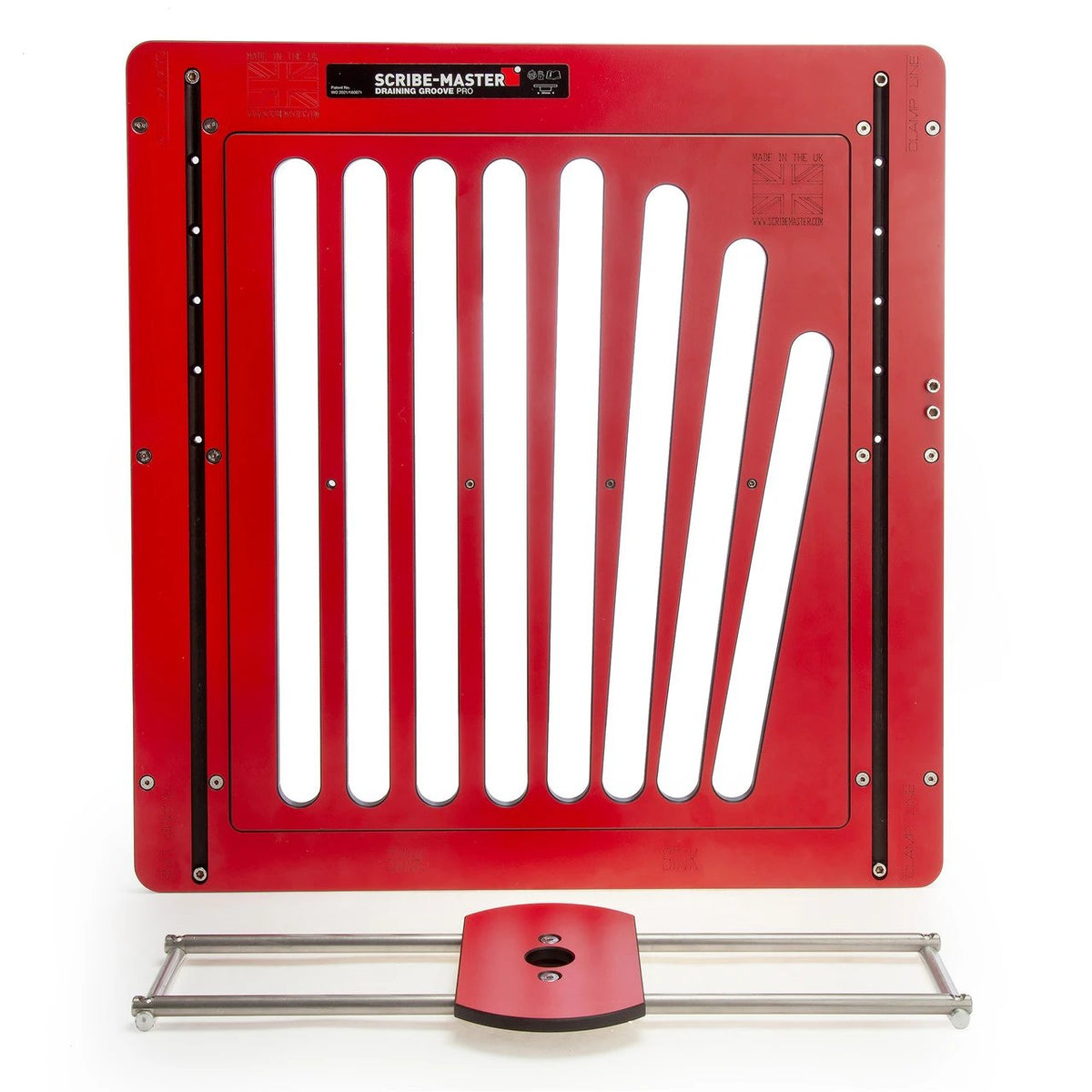

• DGSSSF multi-groove insert allows straight slot and straight fan groove patterns
• DGSSSF template features Flex-Tech construction to help prevent bowing and improve accuracy
• Manufactured from durable 12mm CNC-machined compact grade high pressure laminate
• Designed for professional kitchen fitting, worktop fabrication and woodworking applications

Contents:

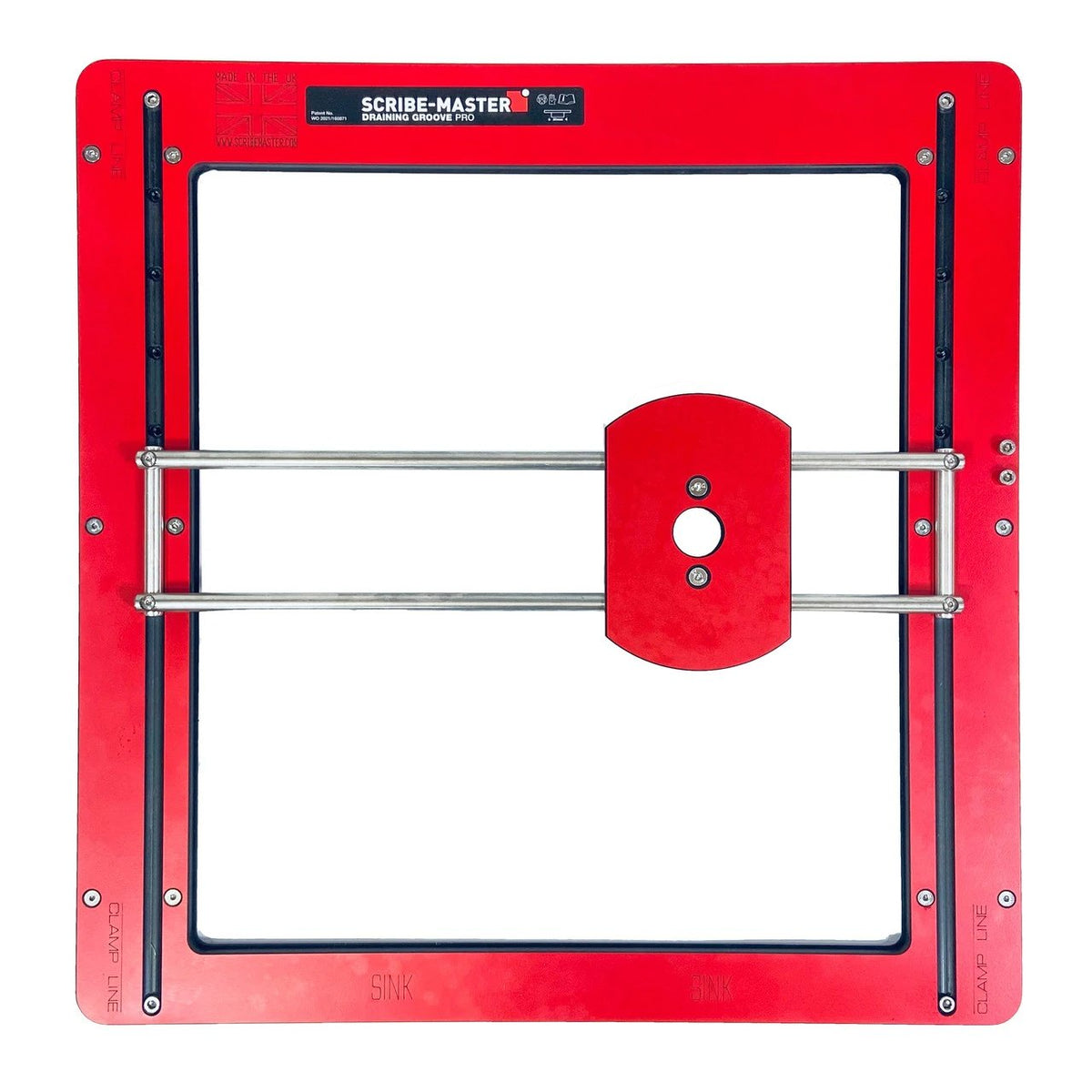

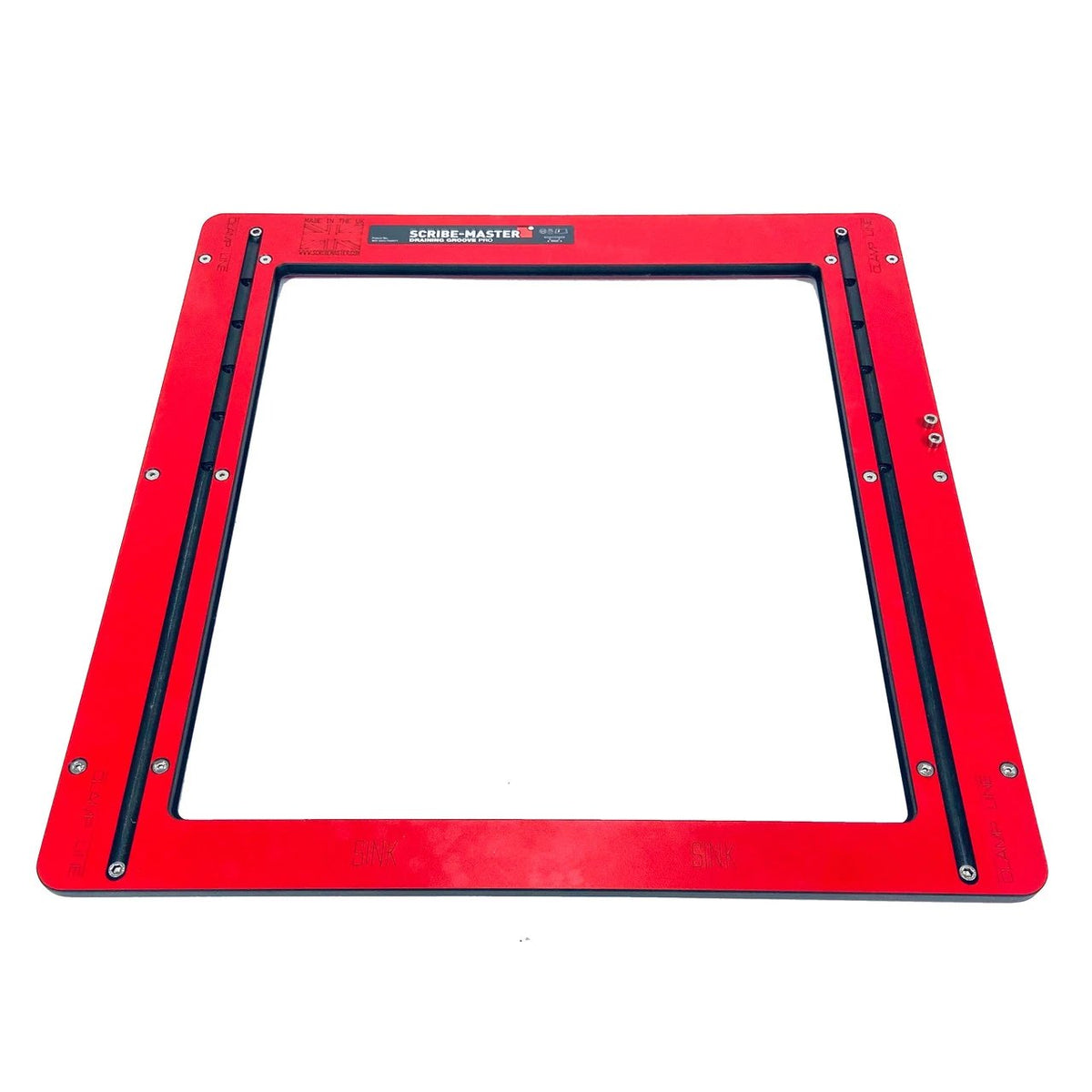

• 1 x Scribe-Master DGPRO Draining Groove PRO Jig

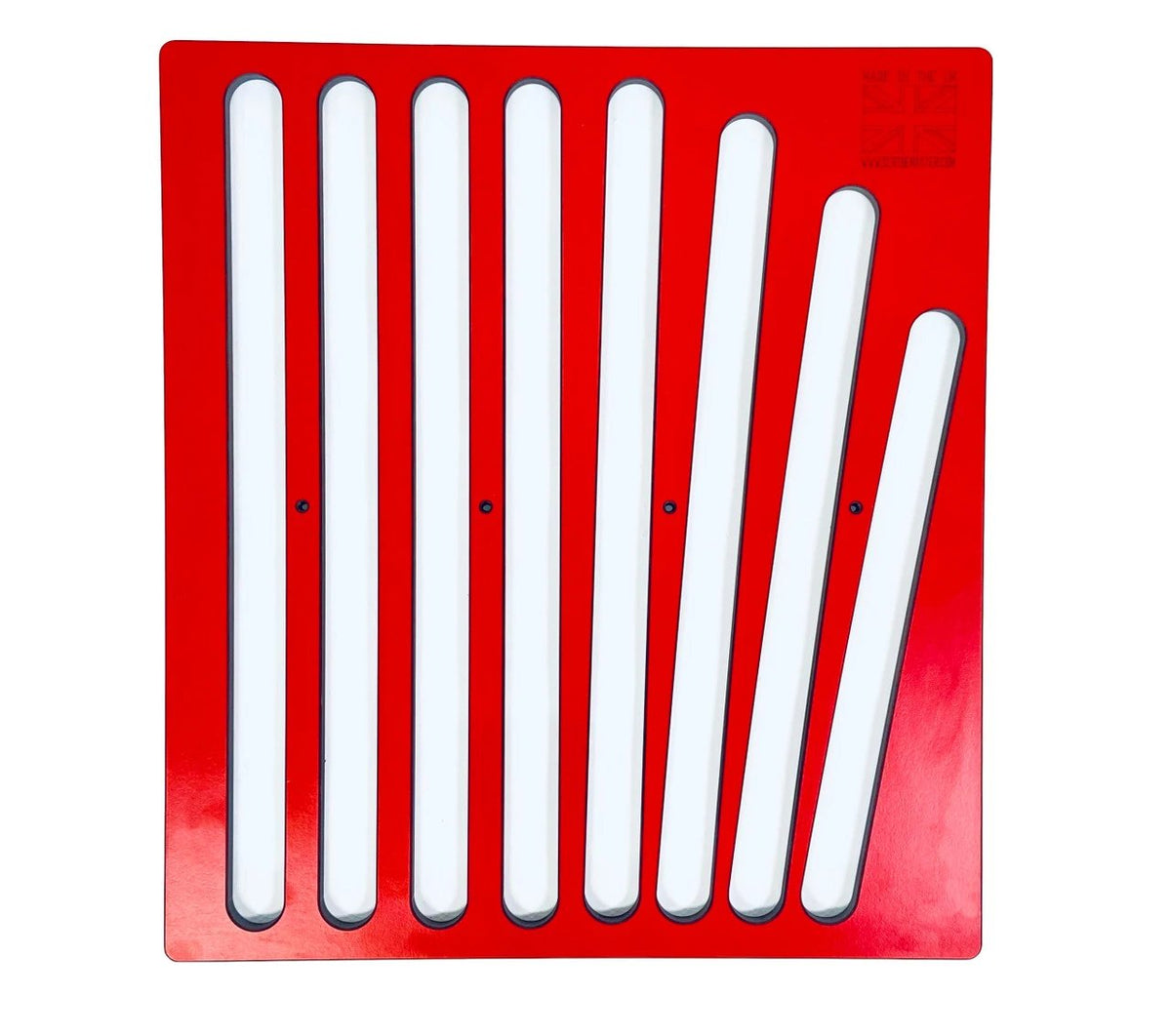

• 1 x Scribe-Master DGSSSF Straight Slot/Straight Fan Template
• 2 x Index Pins

DGPRO Specification:

• Built-In Fall: 0.5°
• Groove Length: 447mm
• X-Axis: 447mm
• Y-Axis: 415mm
• Length: 600mm
• Height: 600mm
• Thickness: 12mm
• Guide Bush Required: 30mm
• Router Required: 1/2in Plunge Router
• Cutter Required: R9.5mm Cove Cutter

DGSSSF Specification:

• Template Type: Straight Slot / Straight Fan
• Pitch: 45-75mm
• Groove Length: 438mm
• Guide Bush Required: 30mm
• Router Required: 1/2in Plunge Router
• Cutter Required: R9.5mm Long-Shank Cove Cutter
• Length: 500mm
• Width: 500mm
• Thickness: 12mm
• Material: CNC-Machined Compact Grade High Pressure Laminate
