Masterplug Weatherproof Box with 4 Socket 8m Extension & Timer

Description:

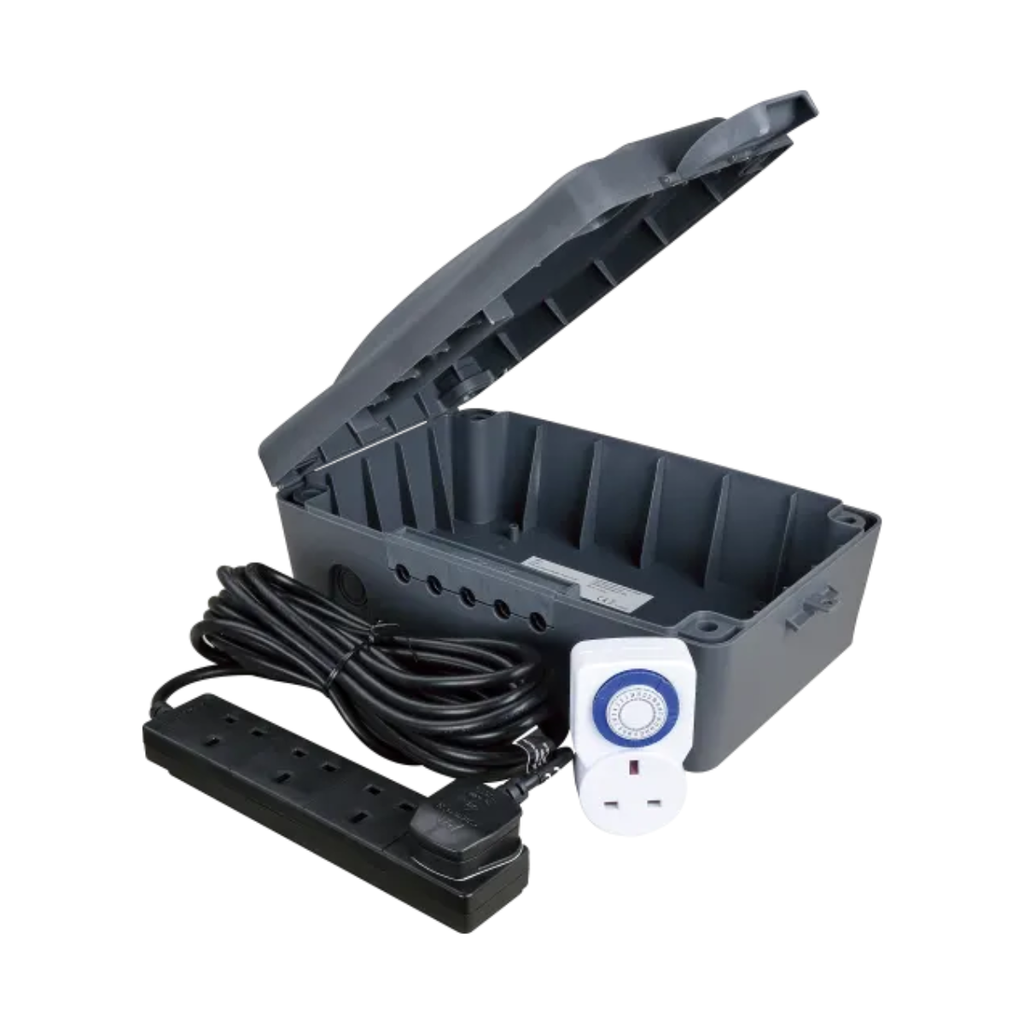

The Masterplug WBXBFG8BTMS24-MP Weatherproof Box Kit is a versatile outdoor power solution designed for garden, light DIY, and seasonal use. This IP54-rated enclosure includes a 4-socket extension lead with an 8-metre cable and integrated 24-hour mechanical timer. Featuring dust and splash resistance, multiple cable entry points, and safety-shuttered sockets, it provides a safe and convenient way to power multiple devices outdoors while keeping connections protected.

Specifications:

• Operating Voltage: 220–240V
• Maximum Load: 13A / 3120W
• Number of Sockets: 4 (safety shuttered)
• Extension Lead Length: 8 metres
• Timer: 24-hour mechanical with 15-minute segments and manual override
• IP Rating: IP54 (dust and weatherproof)
• Cable Entry Points: 5 total (2 optional M20 gland positions)
• Wall Mountable: Yes
• Construction Material: Polypropylene (weatherproof box)
• Base Colour: Grey
• Standards Compliance:
• Weatherproof Box: EN62208:2011
• Extension Lead: BS1363-2
• Timer: EN60730-2-7

Dimensions:

• Weatherproof Box: H 126.5mm x W 220mm x D 351mm
• Timer: H 100.5mm x W 62mm x D 63.3mm
• Extension Lead Housing: H 50mm x W 230mm x D 26mm

Features:

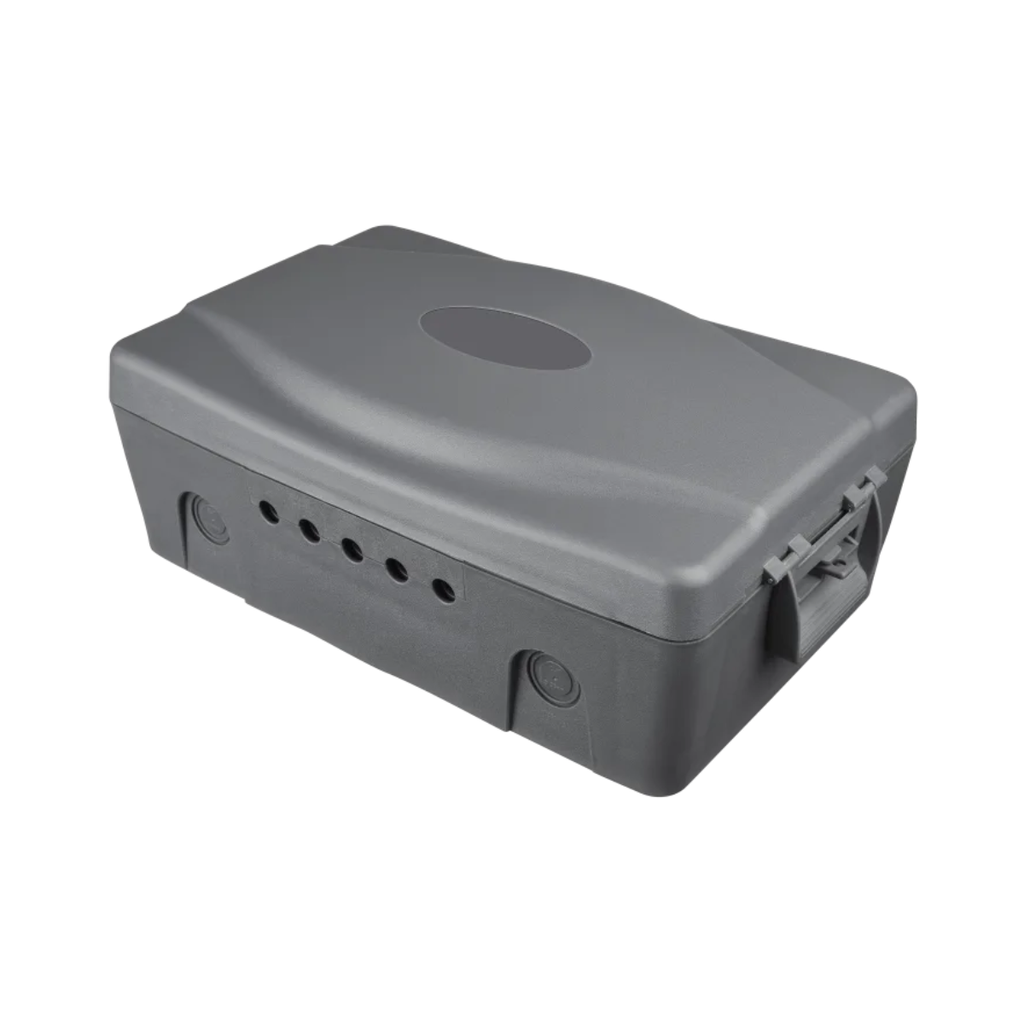

• Weatherproof IP54-rated enclosure with secure hinged lid
• Fits bulky adaptors, transformers, and plug-in timers
• Includes 4 safety-shuttered UK sockets
• 8m heavy-duty extension lead included
• Integrated 24-hour mechanical timer with manual override
• Five cable entry points with two optional M20 cable gland positions
• Supplied with hook & loop fastener for internal mounting
• Padlockable lid for added security (padlock not supplied)
• Wall-mountable for a neat installation
• Ideal for garden lighting, water features, and outdoor tools
